Version Identification (Xbox Original)
6min

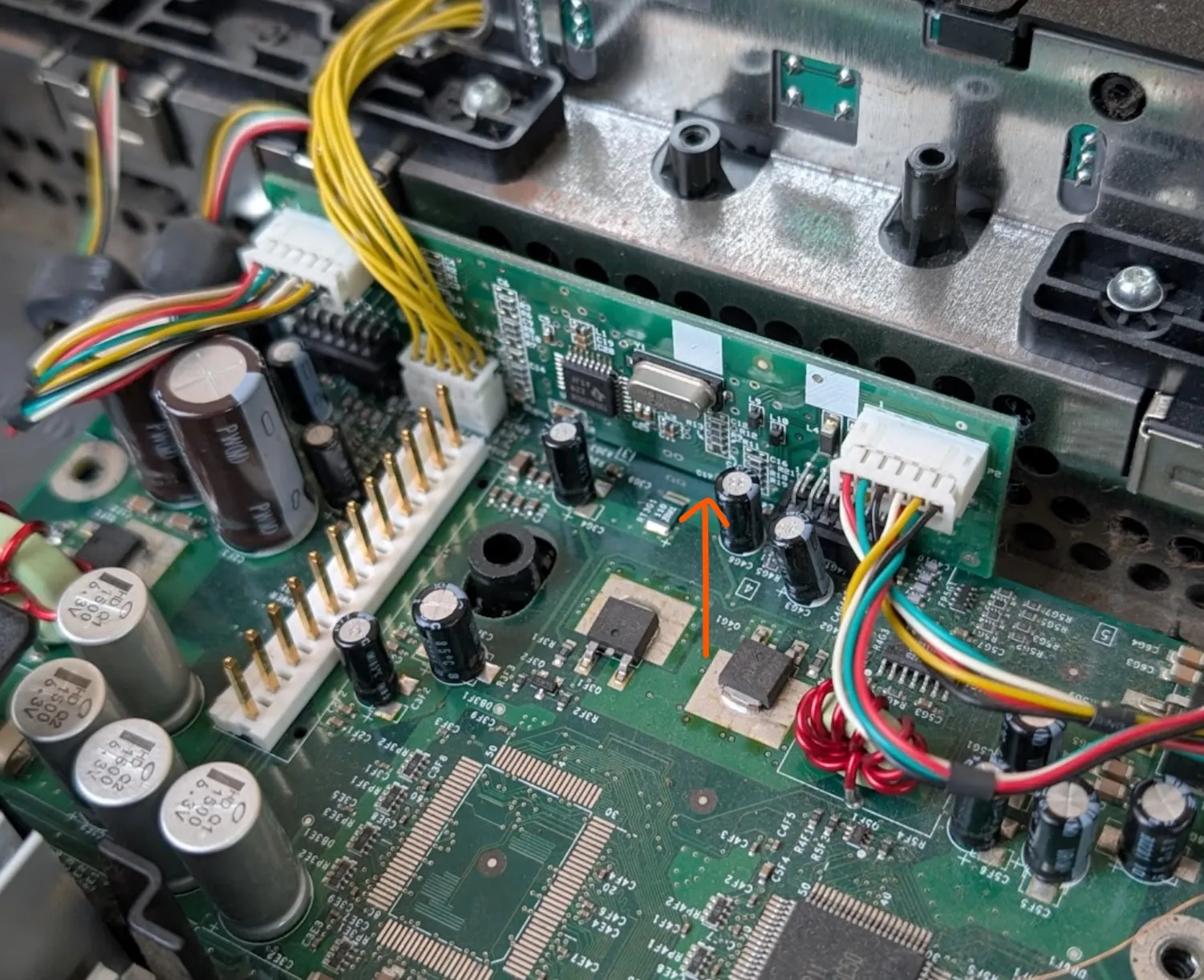

here are the simplest ways to identify your xbox version xbox 1 0 if your consoler has a single row for the psu, and the controller connectors on the front of the console have a separate pcb that plugs in to the motherboard, it is a v1 0 xbox 1 1 if your console has a single pin row header, but the controllers plug straight into the motherboard without a separate pcb, it is a v1 1 xbox 1 2 / 1 3 the only real difference between 1 2 and 1 3 is the lframe (pin 3) of the lpc header (where you connect mod chips) disconnected, although not visibly there is no other real difference if you have a 1 2 or 1 3 model, you will have a double row power header, and a conexant video chip xbox 1 4 / 1 5 the only difference between 1 4 and 1 5 is the 1 5 has pins 2 and 9 disconnected on the lpc the 1 4 and 1 5 version have a double row power header, and a focus video chip xbox 1 6 the v1 6 will have a dual row power pin header, the eeprom next to the lpc port, and an xcalibur video chip
